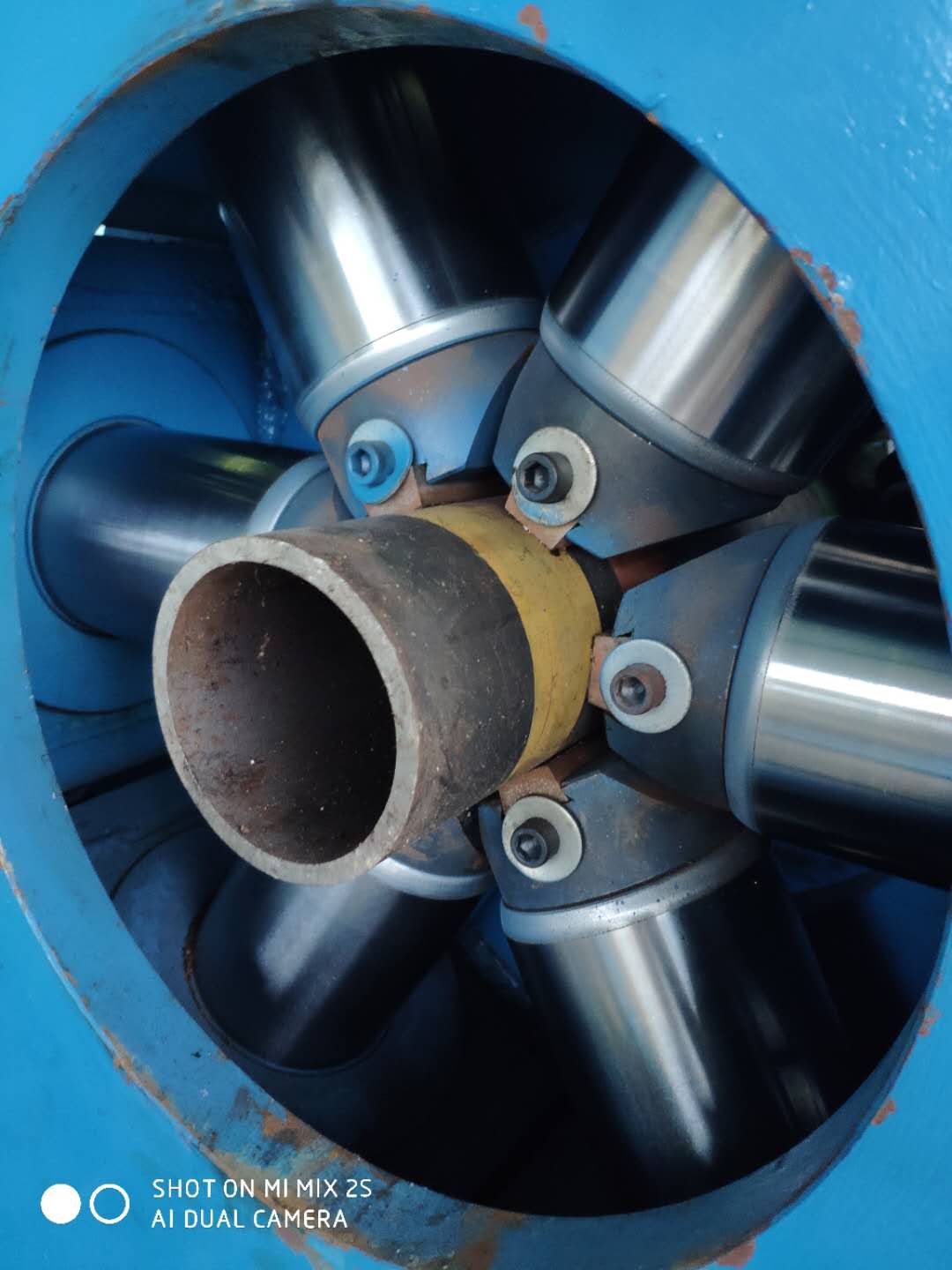

YNJQ-300 hydraulic bucking machine has five hydraulic sycliders, in working, the pipe is fixed , the five hydraulic cylinders synchronized able to clamp the coupling and rotate continuousely. Every cy

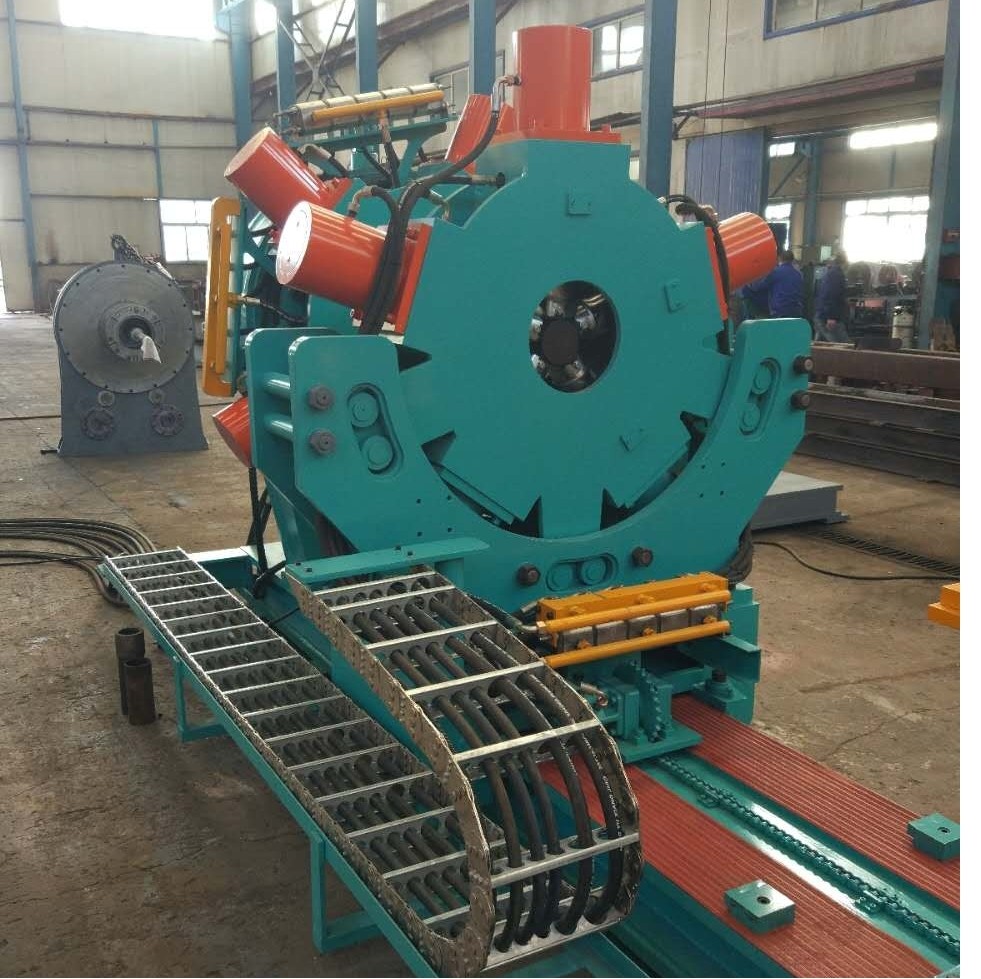

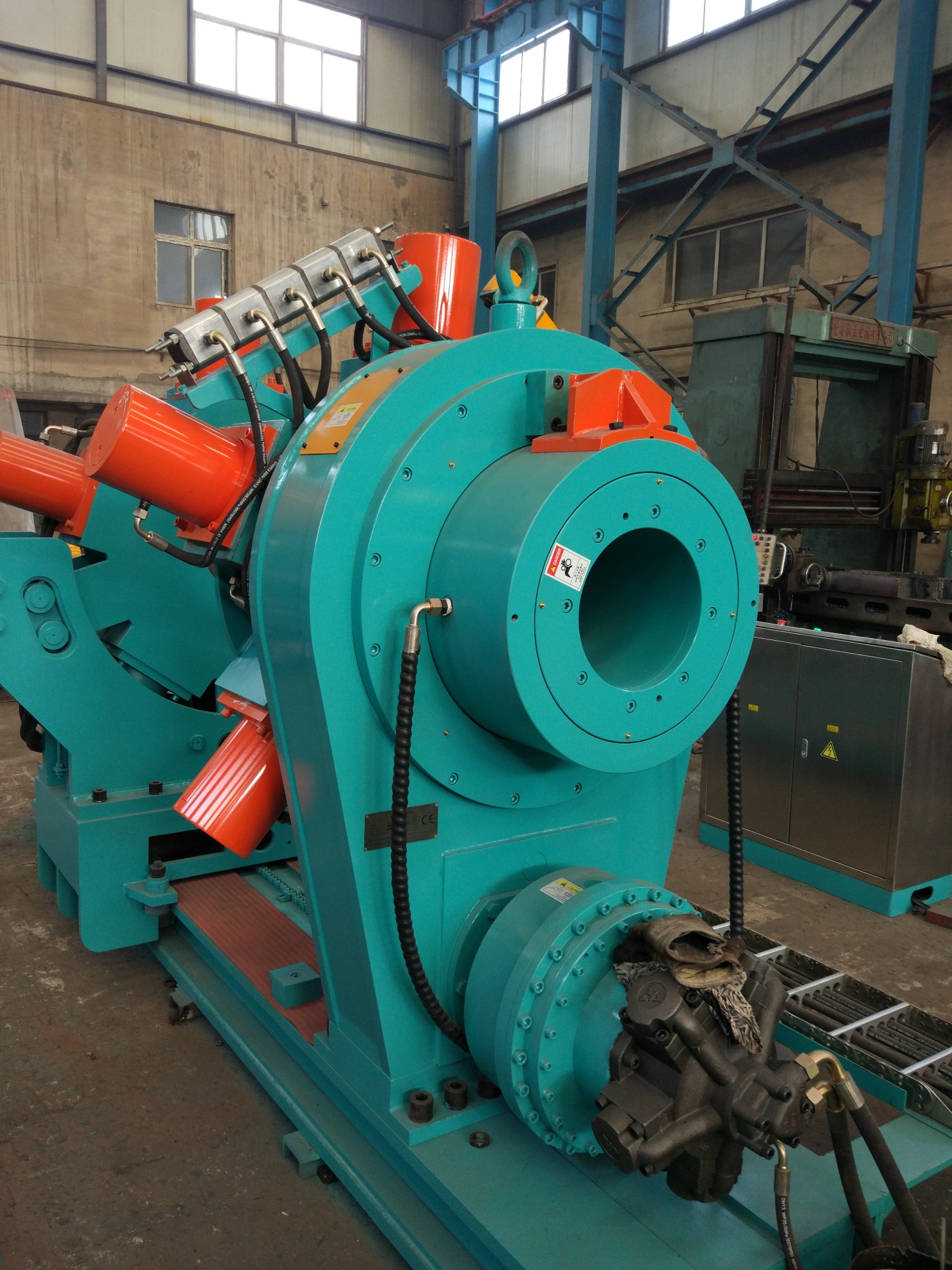

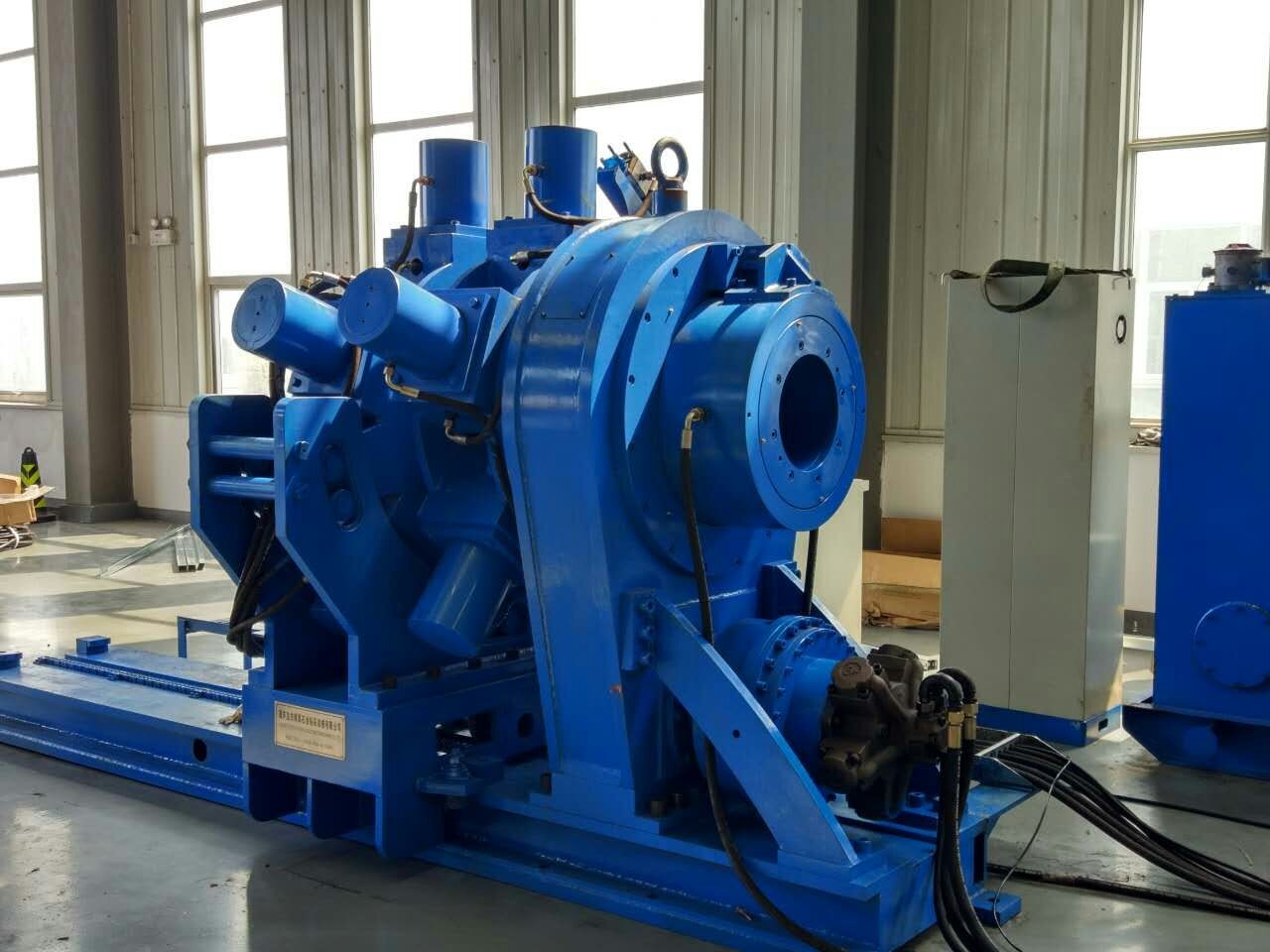

YNJQ 300 bucking unit is a machine designed for disassembly and assembly through 360° continuous rotation and is provided with high precision torque automated test system. This machine is mainly used for disassembly and assembly of some cylinder threaded connection parts such as casing collar, tubing collar, oil well pumpcollar, tool joint, packer adapter, downhole tool and drilling tools in oil field. In addition, it is also feasible to additionally install eccentric adjustment unit, disassemble and assemble eccentric workpiece(100mm).
Model： | YNJQ-300 | Power tong: | 360°full rotation |
Bore diameter： | ￠310mm | Pipe range： | 2-3/8"" to 10" |
Max.torque: | 80,000 lb-ft | Torque accuracy： | 200 lb-ft |
Speed range： | 0.5-6r/min | Motor power： | 30Kw |
Size： | 6mx1.9mx2.22m | Total weight: | 14t |
Manufacture : | Boyu machinery | Delivery time: | 45days |
Connections:
| API (round & BTC)and Premium connections(with or without shoulder) | ||
Scope of supply
Item | Configuration Name | Qty. | Unit | Remarks | |
1 | Bucking machine/ host machine | Power tong/ Headstock | 1 | set | |
Backup tong/ Tailstock | |||||
Base | |||||
2 | Console | Computer torque recorder, saving records, printing curve report | 1 | set | |
3 | Hydraulic Power System | Max.pressure：20MPa flow rate：50-240L/min | 1 | set | |
Specifications of the bucking machine YNJQ300
1) Model：YNJQ-300
2) Bore diameter：￠310mm
3) Centre hight：1300mm
4) Apllication：60mm to 300mm；
5) Speed range:
It takes double pump air-cooled hydraulic power, manual stepless speed control the rotary speed, rotating head speed is :0.5-6r/min。
6) Make –up torque
a) Max. torque
The Max. make-up torque is 80KN.m@ 20Mpa pressure
b) Torque display
The computer can display, record and control the torque and turns.
7) Control mode
PLC+15” tablet PC，operation with buttons. And the machine will stop automatically reaching the setting torque.
8) Torque accuracy：200 N.m，
9) Floating Back tong for eccentric connection （Eccentricity：100mm）
10) Dies marks： according to API, and no damage for the workpiece accuracy
11) Motor power：30Kw
12) Hydraulic system：Max.pressure：20MPa，flow rate：50-240L/min
13) Dimensions
Main machine 6mx1.9mx2.22m
Hydraulic unit 2.2mx1.15mx1.8 m
Control cabinet 1.6mx0.5mx1.55m
14) Weight：14T，
Dimensions
Main machine 6mx1.9mx2.22m
Hydraulic unit 2.2mx1.15mx1.8 m
Control cabinet 1.6mx0.5mx1.55m
Weight：14T，
